4.3-inch RS485 LCD Touchscreen for Daly H, K, M, S, and Active/100Balance

4.3-inch RS485 LCD Touchscreen for Daly H, K, M, S, and Active/100Balance

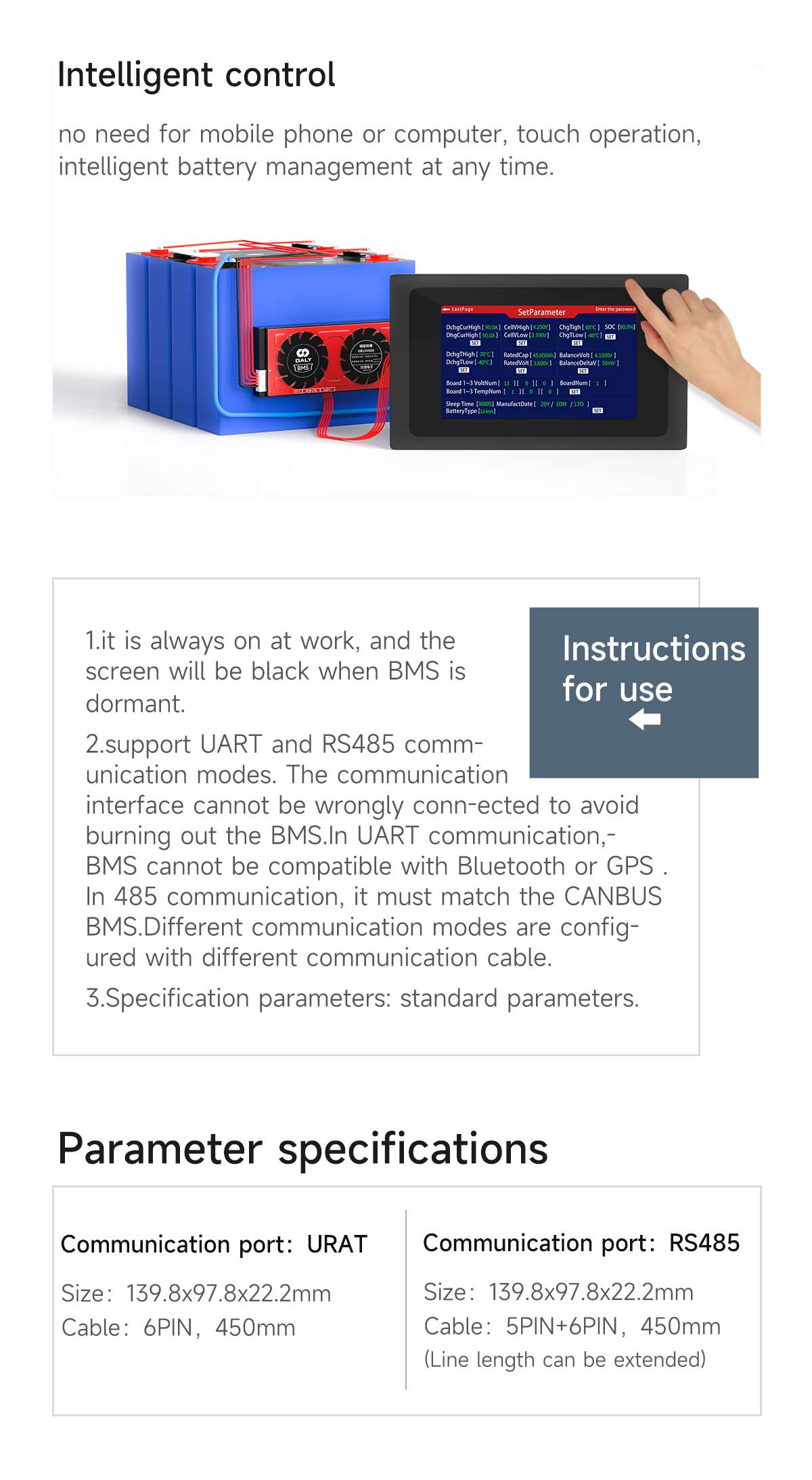

The screen, in cooperation with the SMART BMS, enables monitoring of the current status of all battery pack parameters. It serves as an alternative or a supplement to the mobile app and Bluetooth module, especially for stationary devices where reading from a built-in screen is more convenient.

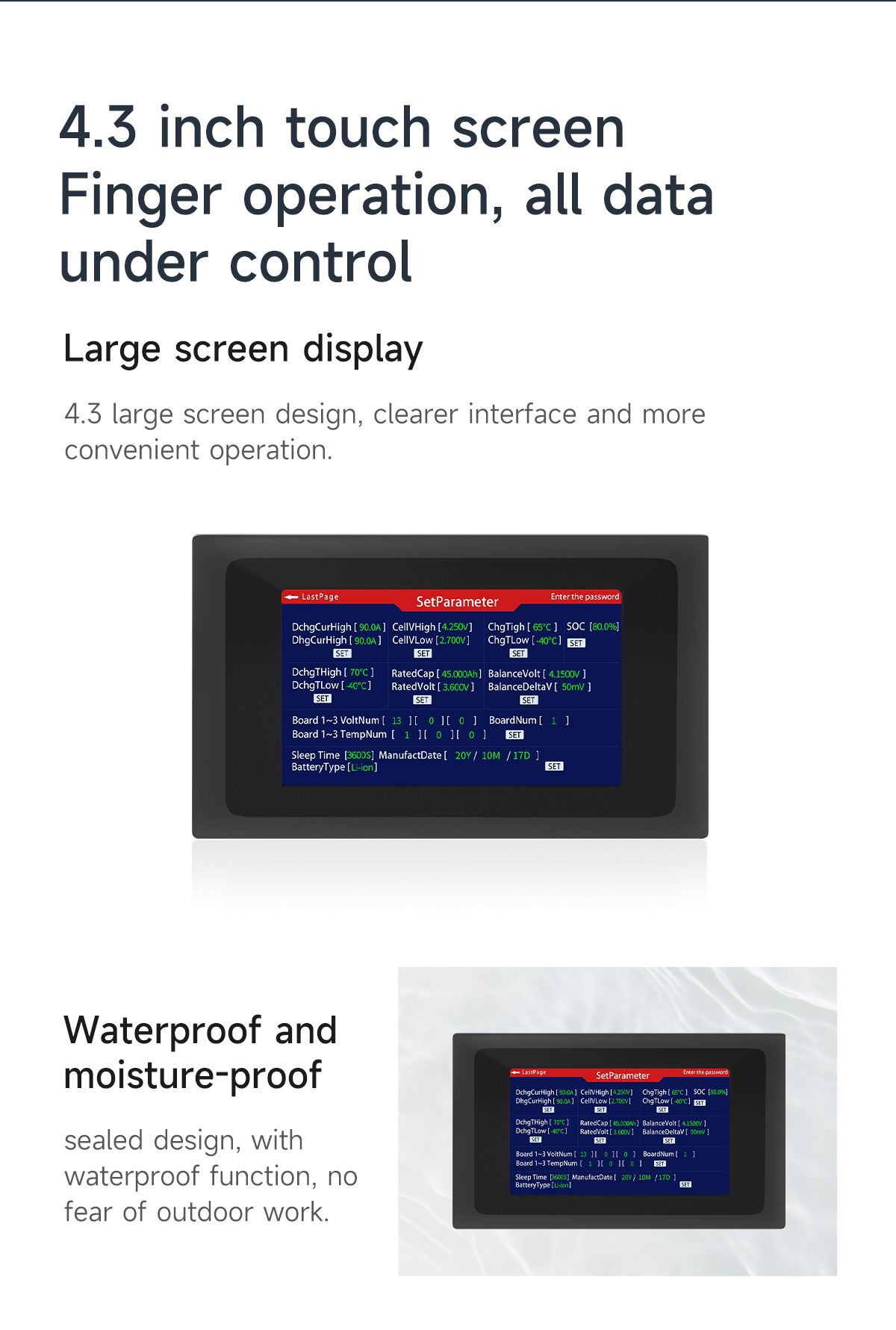

Just as with the app, the screen allows you to modify most BMS parameters (e.g., the charging temperature range).

Thanks to the connection being implemented via RS485—rather than UART, as in the standard DALY screen—it is possible to use the screen and another device requiring a UART port simultaneously.

This is particularly useful for the 100Active/100Balance series BMS, which feature a single UART port. This port is often used to connect a WiFi module, which previously made it impossible to use the screen at the same time. With the RS485 screen, this is now fully possible.

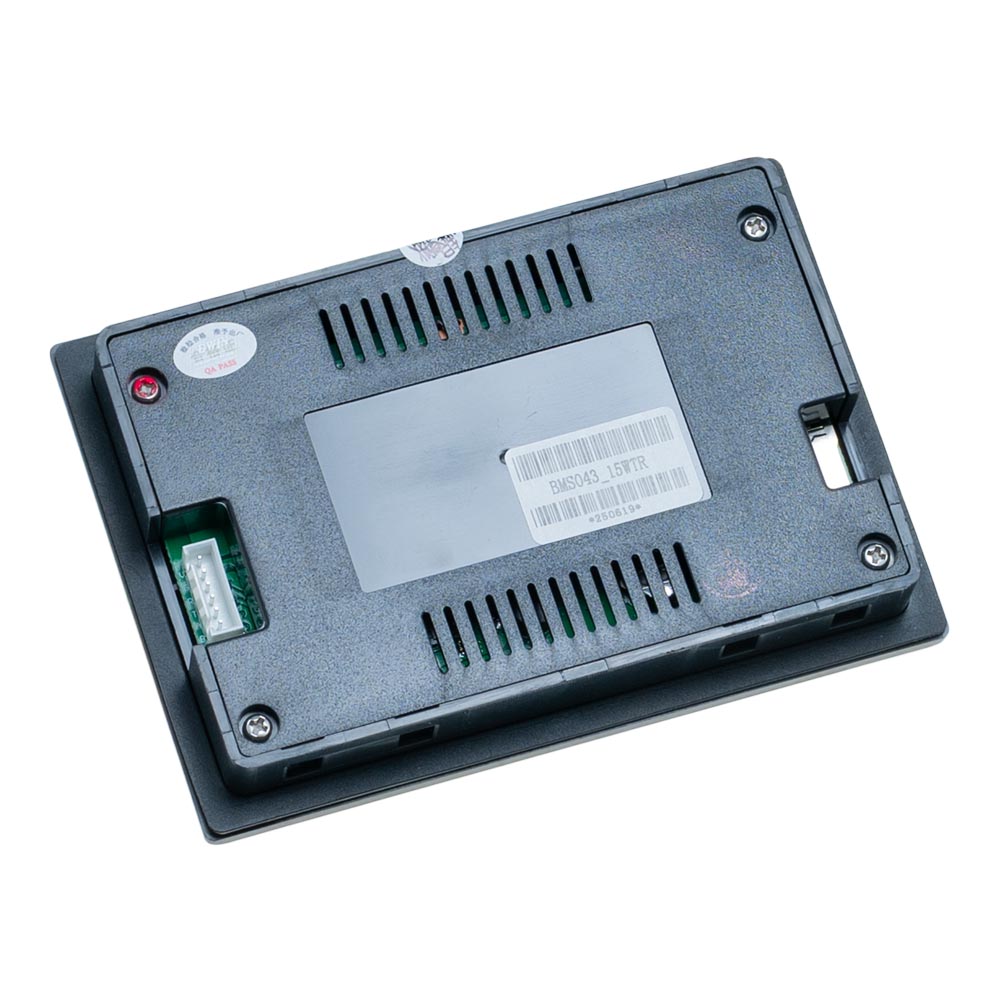

The screen does not require any additional software installation; simply connect it to the RS485/CAN port on a Daly SMART BMS (H, K, M, S, or 100Balance Active series).
This screen is not compatible with older versions of Daly SMART BMS (different plug type). For those models, you should use the standard LCD Touchscreen for Daly SMART BMS.

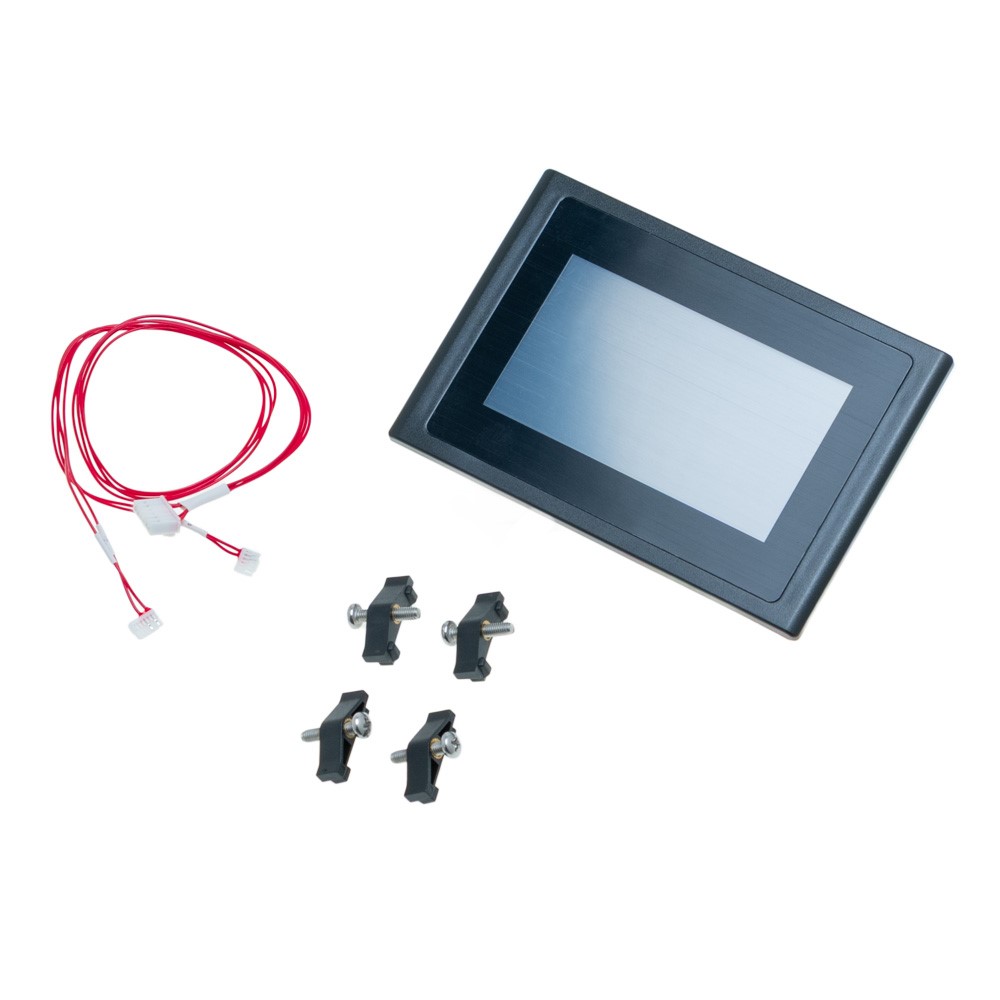

The screen is supplied complete with a connection cable and mounting hardware.
