BMS module Li-Ion 6S 15A T G-Series Standard

BMS module Li-Ion 6S 15A T G-Series Standard - Image 2

BMS module Li-Ion 6S 15A T G-Series Standard - Image 3

BMS module Li-Ion 6S 15A T G-Series Standard - Image 4

BMS module Li-Ion 6S 15A T G-Series Standard

Name: BMS module Li-Ion 6S 15A T G-Series Standard
SKU: ID00412
Availability: InStock

€10,10

In stock (can be backordered)

BMS module for Li-Ion packs. Manual for BMS G, H, K, M, S. Principles for selecting BMS for a battery pack.

ADDITIONAL INFORMATION

BMS module for protection against short-circuit, overcharge, over-discharge and voltage equalization function of individual cells. Designed exclusively for Li-Ion packs. The system is supplied ready to work with standard parameters corresponding to the cells available on the market. The modern design of the system provides

Resistant to dust, vibration, impact-ideal for demanding applications.
Common power port-no need to bring a separate cable from the charger
Lower heat dissipation at the same load than competing chips
Passive balancing current 100mA
Reduced power consumption for the BMS’s own needs

Supplied complete with a cable to connect individual cells and an NTC temperature probe. Before installing the system, please read the attached instructions.

Karta produktu

Additional information

Battery voltage
Brand	DALY
Cell type	lithium-ion (Li-Ion)
Maximum charging current	15A
Maximum continuous discharge current	15A
Outlets	Wire 2x6mm² (AWG10)
Overcharge protection	4,25V+/-0,05
Discharge protection	2,7V +/-0,1
Cell balancing current	100mA

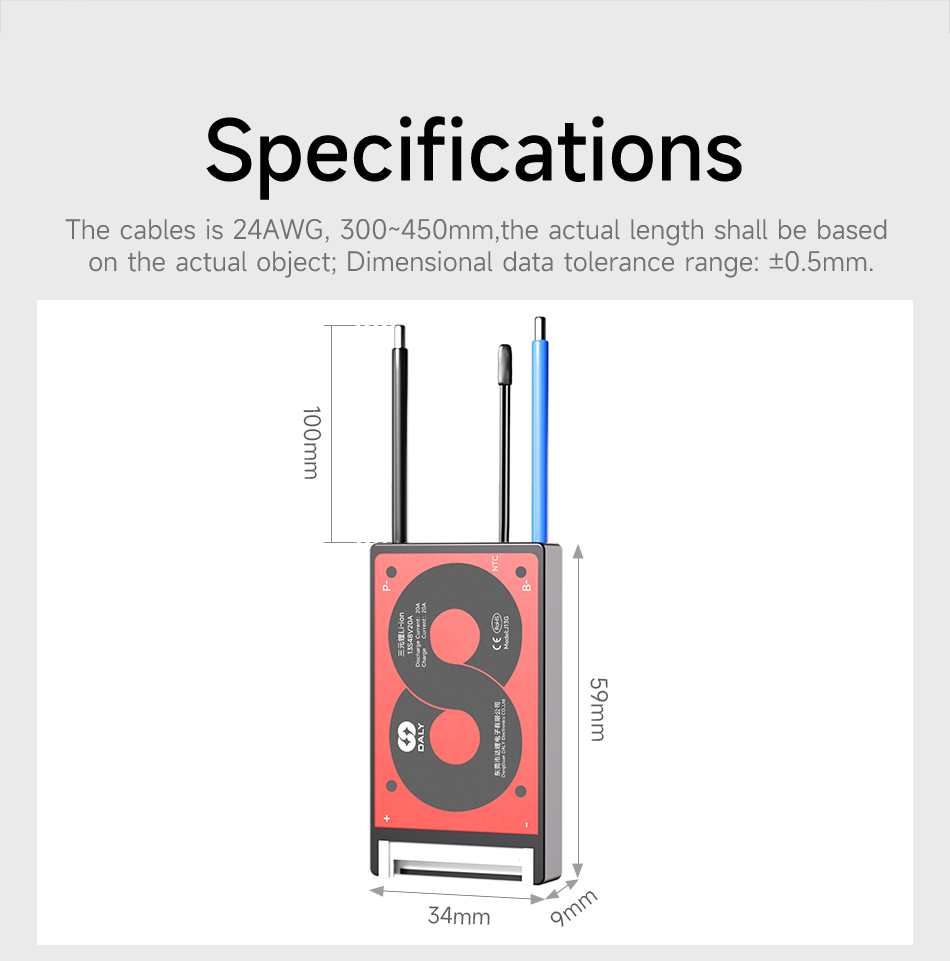

Size	59x34x9mm
